Creasing and Cutting for Package Application

Vinyl Cutter

GCC RX II-CR is equipped with a tool holder loading the creasing tools and blades. For the applications, the cards and showcases can be simultaneously creased and cut in one time.

Applicable Models

RX II / RX II (Creasing) Vinyl Cutter

Details

GCC Cutter Laboratory specially presents you the creasing application in this month.

GCC RX II-CR is equipped with a tool holder loading the creasing tools and blades. For the applications, the cards and showcases can be simultaneously creased and cut in one time. Not only can save time but also create the diversified image draw and edit for a user, enabling products made by RX II-CR to present craft more than value and excellence.

In addition, RX II series combine the procedures to set color by many parameters, allowing a user to set many parameters by different colors and providing more convenience for a user when setting the parameters.

Tips:
It is recommended the card weighs from 322 to 562 gsm (200 to 350 lbs).
The weigh will change with the paper type and thickness.

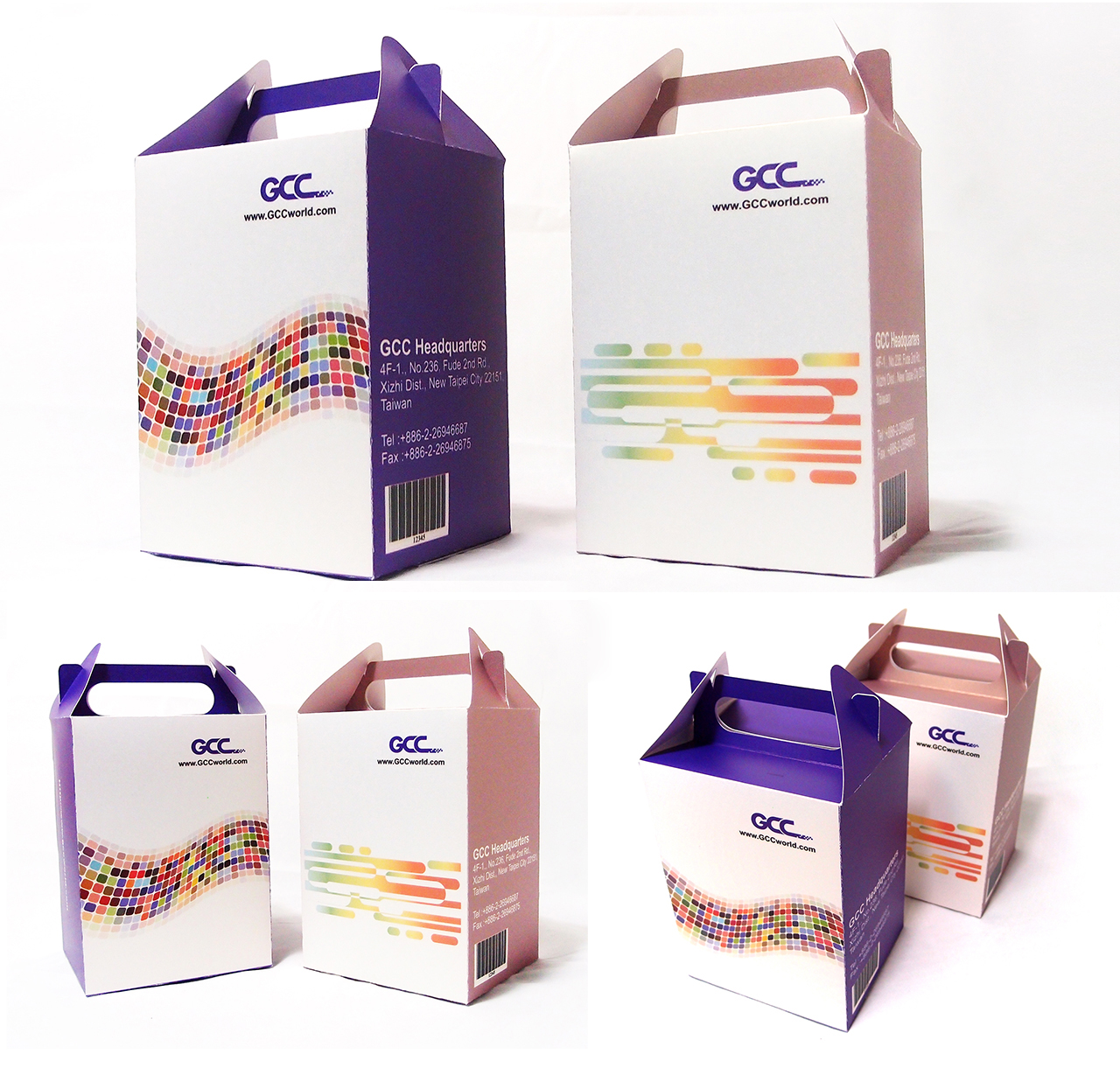

Sample:

Reference Parameters:

	Blade	Creasing
Speed	15cm/s	3cm/s
Force	415g	600g
Length	0	0
Offset	0.250mm	0mm
Quality	Normal	Normal
