RX II / RX II (Creasing) Vinyl Cutter

Cutting Plotter

The brand new RX II series of cutting plotters is available in four sizes, 61cm, 101cm, 132cm, and 183cm, which are among the best models for higher blade pressure, faster-cutting throughput, and precision of long tracking compared to same class models.

1 1

Cutting Plotter

RX II / RX II (Creasing) Vinyl Cutter

Designed With a stylish appearance and new functional features, the RX II series is the top notch cutter in the market for professional sign makers.

Download

RX II Brochure Complete Cutter Product Catalog

INQUIRY

RX II / RX II (Creasing) Vinyl Cutter Feature

Creasing Ability (only for creasing model)

Equipped with the dual tool holders with creasing tool and blade, RX II creasing model offers cardstock creasing and cutting to make small volume of paper box. PS. It’s suggested that the cardstock weight range is 200 to 350 gsm, and the weight will vary with the type and thickness of paper.

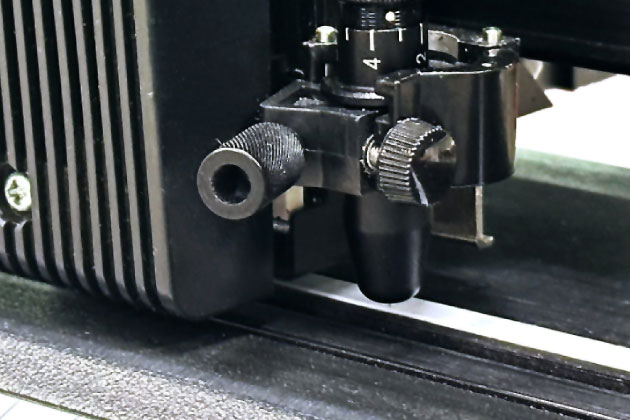

Dual Tool Holder (creasing model only)

Equipped with special dual holder – blade holder and creasing tool holder - on the carriage, creasing lines and cut lines can be made at one time. It saves your valuable time.

Section Cutting

Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC RX II series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.

Auto Rotation

New registration marks defined to detect material feeding direction. RX II detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.

Segmental Positioning

RX II series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.

Enhanced AAS II Contour Cutting System

The RX II series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.
Functions include:

1st-mark auto-detection	4-point positioning
Segmental positioning	Multiple copies

Multiple Pressure Pinch Rollers for Different Media

The Multi-Pressure Pinch Rollers give users three pressure settings to better cater to the different types of media that they are working with. The following shows suitable settings for some materials.

Materials	Left side	Middle	Right side
Sandblast mask, Reflective film	Heavy	Medium	Heavy
Vinyl	Medium	Medium	Medium
Window tinting film	Medium	Light	Medium

Triple Port Connectivity

RX II series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and RX II. Ethernet connection enables multiple RX II to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.

Auto Cut Off

This features allows users to set the cutter to cut off the media after the completion of each job, making it easy to set up an unattended workflow for mass production. Or user can simply push the “Cut off” button after the completion of a job to have the media cut off automatically.

Touch Key Panel & Backlight LCM

The brand new touch key panel is easy to use and durable. The intuitive design allows new users to operate the machine easily. The easy-to-use and multi-language touch key panel can remarkably simplify complex tasks. Backlight LCM makes users can recognize the text on the panel more easily.

Efficient Throughput

At up to 60 inches per second of cutting speed, RX II series cutting throughput simply outperforms the competition.

600 Grams of Cutting Force

Selectable cutting forces, ranging from 5 to 600g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films.

Innovative Tangential Mode

The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.

Media Support System

The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.

Handy Grooved Cut Off Tool

This handy and innovative design allows you to cut off a finished job in a straight line easily, reducing the possibility of wasting usable material.

Advanced One Click Driver

RX II series includes a Windows driver that allows sign makers to edit signs from CorelDRAW and output directly to the RX II series cutters. The One Click Driver simplifies the driver installation process. You just double click on the driver installation icon and the program will take care of the rest.

Multiple Parameters Setting by 16 Different Colors

The new interface allows users to set up multiple parameters by using different color lines. This gives the operator greater flexibility when setting up a job.

Selective Pinch Roller Positioning

Each pinch roller can be positioned and operated individually, widening the RX II series cutting plotters’ range of applications.

Guaranteed 10m Tracking Ability

The exclusive grid drum and precisely engineered mechanism to provide superb tracking ability.

Add-on Flat Table (only for 61 model)

For cutting thick sheet material, such as magnet.

18" x 24" Low Adhesive Film (3 pcs/pk)

Put materials on the Low Adhesive Film to cut, and it’s recommended to work with Add-on Flat Table.

Metallic Blade Holder Φ2.5 mm

Adjusting the blade length to fit your needs.

Wi-Fi Router

Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper.

Stand

To support cutting plotter machine and roll media.

Media Basket

To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.

Safe Blade

Users can cut off the finished job by the safe blade.

Cutting Blades

Users can replace the cutting blade by different materials to meet your need.

Cutting Pad

It prevents the blades from becoming blunt quickly.

RX II / RX II (Creasing) Vinyl Cutter Spec

Model Number		RX II-61 (Creasing)	RX II-61	RX II-101S	RX II-132S	RX II-183S
Operational Method		Roller-Type
Max. Cutting Width		536mm(21 in.)	610mm(24 in.)	1010mm(40 in.)	1320mm(52 in.)	1830mm(72 in.)
Max. Cutting Length		50m (164ft)
Max. Media Loading Width		642mm(25.28 in.)	810mm(31.88 in.)	1326mm(52.2 in.)	1635mm(64.37 in.)	2145mm(84.44 in.)
Min. Media Loading Width		50mm (1.97 in.)
Number of Pinch Rollers		3			4	5
Acceptable Material Thickness		0.8mm (0.03 in.)
Drive Motor		DC Servo Control
Max. Cutting Force		600 g
Max. Cutting Speed		1530 mm/sec (60 ips) (at 45° direction)
Acceleration		4.2 G (gravity)
Offset		0~1.0 mm (with an increase of 0.025mm)
Memory Buffer		32 MB /16 MB (when using AAS)
Interfaces		USB 2.0 (Full Speed), Serial (RS-232) and Ethernet
Type of Command		HP-GL, HP-GL/2
Mechanical Resolution		0.006 mm
Software Resolution		0.025 mm
Distance Accuracy		±0.254 mm or ±0.1% of move, whichever is greater
Repeatability		±0.1mm
Automatic-Aligning System		Completely Automatic Contour Cutting System for print to cut solution
Auto Rotation		Yes
Section Cutting		Yes
Curve & Arc Smoothing		Yes
Configurable Origin		Yes
Test Cut Capability		Yes
Tangential Mode		Yes
Over Cut		Yes
Repeat		Yes
Copy		Yes
Control Panel		LCD (20 digits x 2 lines), 15 Keys, 1 Power LED, 1 Green LED
Diameter of Blade		2.5 mm
Power Supply		100 ~ 240VAC 50/60Hz (auto switching)
Power Consumption		Max. 250 W
Dimension (HxWxD) mm		437 * 1098 * 479		1147 * 1614 * 651	1147 * 1923 * 651	1147 * 2433 * 756
Dimension (HxWxD) in		17.2 * 43.2 * 18.8		45.2 * 63.5 * 23.8	45.2 * 75.7 * 23.8	45.2 * 95.8 * 29.8
Net Weight		25.5kg (56.22 lb)	25kg (55.12 lb)	61.8kg (136.2 lb)	71.5kg (157.6 lb)	82kg (180.8 lb)
Auto Cut Off		Standard
Max. Cut Off Width		642mm	696mm	1107mm	1417mm	1927mm
Stand		Optional		Standard
Media Basket		Optional
Operation Environment	Temperature	15°C~30°C / 60°F~86°F
Operation Environment	Humidity	25% ~ 75%
Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.) The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly. GCC reserves the right to change the specifications at any time without notice. GCC certified material in tracking is Avery MPI 3000. The above listed specification values are effective only when operated with media certified by GCC. Please note that the machine manufactured before 09/26/2017 with 2 mm diameter of blade.

GreatCut-S

Professional plug-in for CorelDRAW (Windows) and Illustrator (Windows and Mac)
Registration marks with“Print & Cut”Support
Multi-languages interface
Available for Windows & Macintosh OSX
Import various file formats, including SVG & PDF
Works with your installed TrueType & OpenType fonts
Support to multiple pen function (Cut by color).
Creasing Ability (Creasing Model Only)
Rhinestone function
Free bundle with vinyl cutters

CoCut Pro XT

Professional plug-in for Corel DRAW, Illustrator, AutoCAD
Cutting by color
Registration marks with “Print & Cut” Support
1-click export of cut data as CMX (CorelDRAW) or PDF to a hot folder
Bitmap contouring facilitates creation of duplicates
Seven CoCut proprietary welding functions directly usable in CorelDRAW, Illustrator and InDesign
Multiple plotters can be configured and controlled simultaneously with one computer
Seamless transition from GreatCut to CoCut Pro XT

Sure Cuts A Lot

Multi-languages interface
iOS tablet app Sure Cuts A Lot 3 available (i-Craft™ output only)
Available for Windows & Macintosh OSX
Import various file formats, including SVG & PDF
Works with your installed TrueType & OpenType fonts, as well as thousands of free fonts available on the Internet.
Support to multiple pen function (Cut by color).
Creasing Ability (Creasing Model Only)
