The New RX II Creasing Model Is Available Now

Sep 21, 2017

Product Release

GCC, a global forefront equipment-manufacturing provider in the visual communication industry, is proud to launch the RX II creasing model.

With small-volume and large-variety production becoming more and more popular, GCC has developed a new RX II creasing model equipped with dual holder – blade holder and creasing tool holder - on the carriage, creasing lines can be made on the cardstock with useful creasing tool, and folding it into paper box with ease. This application can be used on sample making or small volume production. It is recommended to purchase Add-on Flat Table work with RX II creasing model.

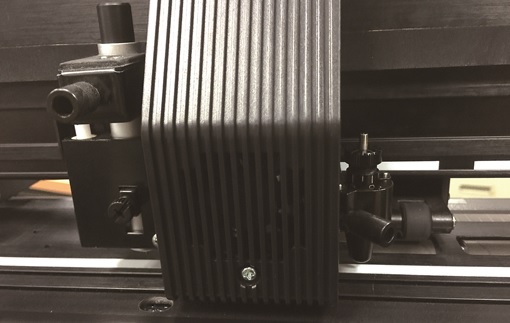

Dual holder

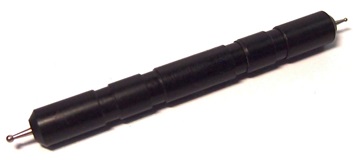

Creasing tool

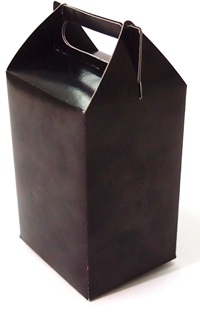

Sample

Please refer the specifications below.

Specifications

Model Number	RX II-61 (Creasing)	RX II-61
Max. Cutting Width	536mm (21”)	610mm (24”)
Max. Cutting Length	50m (164ft)
Max. Media Loading Width	642mm (25.28”)	810mm(31.88”)
Min. Media Loading Width	50mm (1.97in)
Number of Pinch Rollers	2
Acceptable Material Thickness	0.8mm (0.03in)
Cutting Force	5~600 g
Max. Cutting Speed	1530 mm/sec (60 ips) (at 45° direction)
Dimension (HxWxD) mm	437 * 1098 * 479
(HxWxD) inch	17.2 * 43.2 * 18.8
Net Weight	25.5kg	25kg
Auto Cut Off	Standard
Max. Cut Off Width	642mm	696mm
Stand	Optional

For more product information, please contact local GCC sale representatives in your area or visit www.gccworld.com.

About GCC GCC, a global leader in professional large format UV-curable inkjet printer, laser engraving/cutting/marking systems, vinyl cutting equipment, provides businesses, governments, and consumers with innovative and reliable solutions. Headquartered in Taipei, Taiwan, GCC has branch offices in Walnut, CA and Capelle a/d IJssel, Netherlands. With over 100 current and pending worldwide product patents and trademarks, GCC has earned a worldwide reputation for innovation, quality and reliability in the awards & recognition, sign, personalization and manufacturing industries.
