JF-240UV
Digital Printing Machine

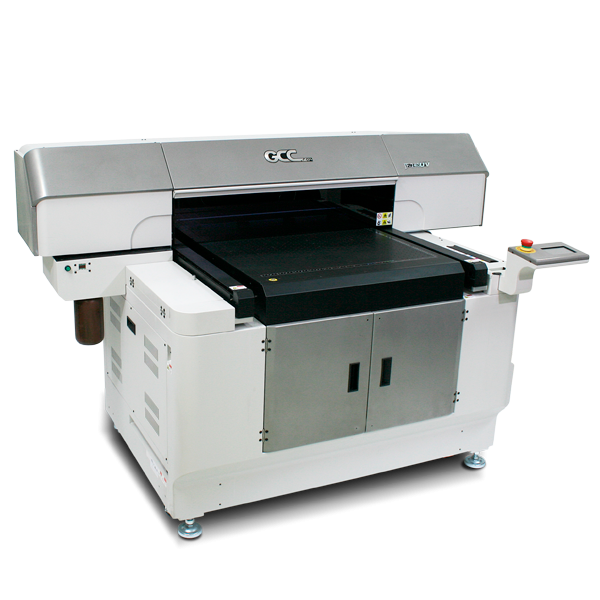

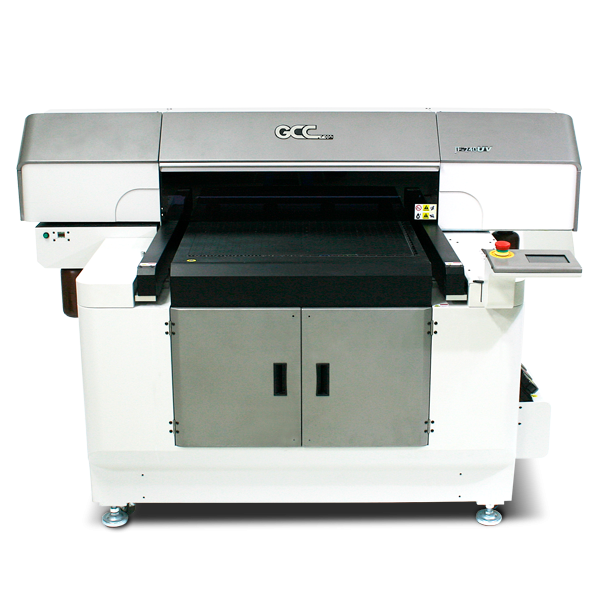

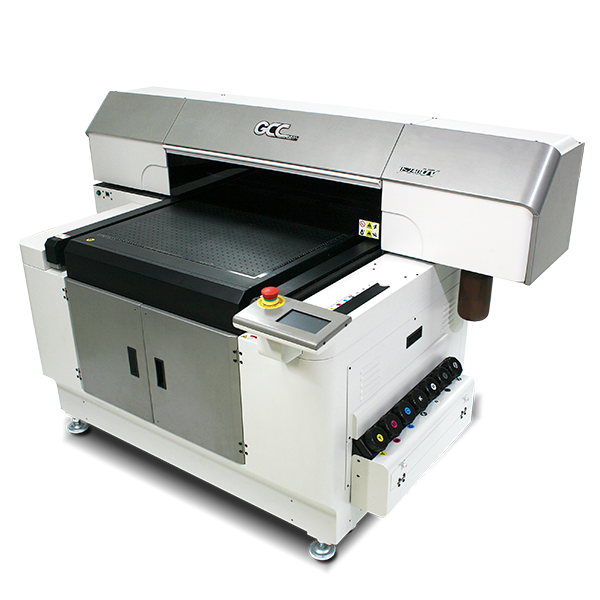

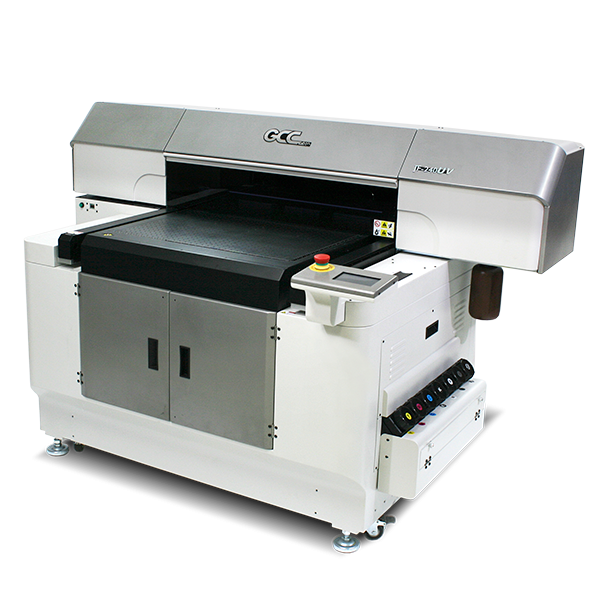

JF-240UV Inkjet Printer
The GCC JF-240UV Flatbed Printer comes with high throughput, dual-UV LED lamps, 1 liter bulk ink, four colors CMYK, and optional Varnish and White color that offers outstanding printing quality for short runs and on-demand market.
JF-240UV
JF-240UV-2
JF-240UV-3
JF-240UV-4
1 1
Digital Printing Machine
JF-240UV Inkjet Printer
With applicable to a maximum of 30cm tall object and 50x60 cm print area, GCC JF-240UV Flatbed Printer eliminates the limitation of printing and is dedicated to applications of custom items.
INQUIRY

JF-240UV Inkjet Printer Feature

Built-in ADA Printing Function

With the specially-developed ADA printing technology, JF-240UV can produce ADA signs with one simple printing process. JF-240UV provides the best solution for ADA-compliant sign printing in a wide range of applications.

Texture Printing Effect

JF-240UV prints raised patterns on whatever materials used to create virtual tactile sensation to make your images stand out in the crowd. Moreover, the high resolution printing ability delivers refined output—even 2pt small letters can be printed with high sharpness and definition in sophisticated details to serve a diversity of applications.

Unparalleled Productivity

Specially designed for UV printing, the dedicated printheads offer outstanding throughput and guarantee printing quality. JF-240UV achieves 5.78m²/h printing speed--the best performance in the same category you can find in the market.

Advanced Varnish Printing Technology (Optional)

Varnish is a transparent coating applied to the surface of the print (image), which forms a thin, uniform layer of transparent gloss after a leveling and UV-curing drying process. Varnish not only protects the printed content, but also improves durability and even increases the added value of the printed products.

The Features of the Varnish Modes:

Dedicated White Solution (Optional)

JF-240UV offers four major utilizing white ink applications as a base, overcoat, spot color and color-white-color for 3 layer printing at the same time. With the White solution, it can be easily used to produce brilliant and rich color output on any transparent and dark media, offering excellent quality images to fulfill all needs for Sign, Labeling and Packaging industries.

Automated White Ink Circulation

Knowing that white ink settles down easily, GCC specially developed automated white ink circulation regularly performs from ink bottle to print heads to prevent the pigment in white ink from settling. The automated white ink circulation greatly diminish the white ink loss and generate the outstanding printing quality.

Auto Media Calibration (AMC™)

Auto Media Calibration (AMC™) gauges the distance between the print heads so the loaded media can be automatically detected and adjusted to the optimized position based on the thickness of the loaded media.

Printhead Gap Auto-Adjustment

Printhead Gap Auto- Adjustment lowers the platform automatically when detecting obstacles that block the movement of printhead before printing to avoid printhead damages.

Superior Working Area

With the maximum of 609.6x508mm (24”x20”) printing area and 300mm (11.8”) media thickness allowance, JF-240UV is able to satisfy different printing needs and outplay the opposition in the market.

Standard Dual UV LED Lamps

The GCC JF-240UV flatbed printer is equipped with dual UV LED lamps to reach high throughput, energy saving and environmental protection goals. Customers can print on heat-sensitive materials such as BOPP and PET films.

SmartMESH™ Banding Free Function

Specially designed SmartMESH™ function applies complex algorithm to ink jetting patterns control to create unparalleled graphic designs. The advanced SmartMESH™ technology effectively solves banding issues and greatly improves image quality.
Rotary Attachment

Rotary Attachment

With GCC innovated rotary attachment system, JF-240UV and JF-2418UV can perfectly perform on cylindrical items, such as bottles and mugs.

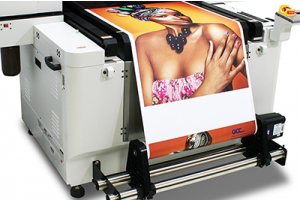

Roll to Roll system

Roll to Roll system

Roll to Roll system running on GCC JF-240UV allows you to lower downtime, operator involvement and meet projects on-demand.

JF-240UV Inkjet Printer Spec

JF-240UV
Printing MethodOn-demand Piezo head
Print Head (Drop Size)UV printing dedicated printhead, 4pl
Printing Area (W x L)609.6 x 508 mm (24 x 20 in.)
Max. Media Size
(W x L x H)		Size650 x 550 x 300 mm (25.6 x 21.7 x 11.8 in.)
WeightLess than 15 kg
Media Height AdjustmentAMC™
SpeedProduction5.78 m²/hr
Quality3.90 m²/hr
Hi-density1.91 m²/hr
InkTypeUV curable ink
Capacity1 liter
ColorsC/M/Y/K + W/V (optional)
Ink Curing UnitDual UV LED lamps
Printing Resolutions1440 x 720dpi、1440 x 1440dpi
Distance Accuracy – When PrintingError of less than +-0.3% of distance traveled, or+-0.3mm (0.01 inch),
whichever is greater
Z-axis MovementMotorized
Control PanelTouch Screen
InterfaceEthernet 1000BASE-T
Operating Environment
(Temperature/Humidity)		22°C -30°C (71.6°F- 86°F) / (40%-60% humidity), higher is recommended
Operating Voltage110 - 240VAC,  50/60HZ
Power Consumption-Operating115V AC (60HZ) (Max. 270W), 220V AC (50HZ) (Max. 260W)
Power Consumption-Stand By115V AC (60HZ) (Max. 160W ), 220V AC (50HZ) (Max. 200W )
Dimension (WxLxH)Printer1760 x 1160 x 1140 mm
69.3 x 45.7 x 44.9 in.
Shipping2000 x 1300 x 1360 mm
78.7 x 51.2 x 53.5 in.
Net WeightPrinter272 Kg
Shipping433 Kg
OptionalRotary attachment
Roll to Roll system
Fume Extraction Unit
*Above specifications are subject to change without prior notice.
