3DS-1
Laser Marking Machine

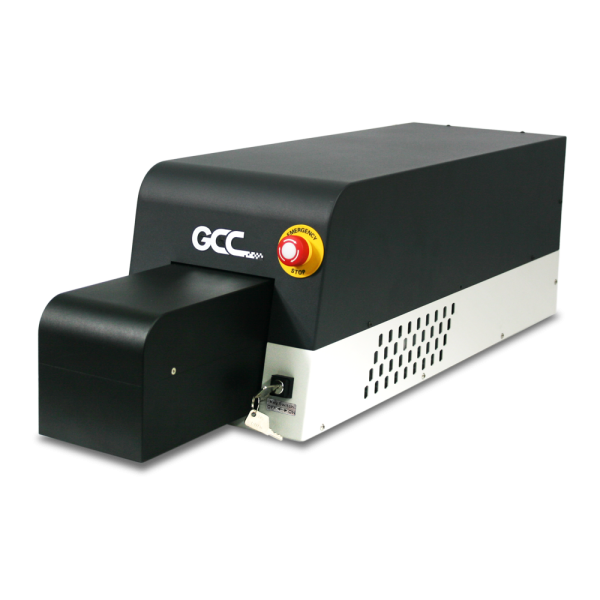

StellarMark 3DS 20-50W Fiber Laser Marker
StellarMark 3DS Laser Marker series is integrated with a 3D scan head, which allows users to process round/cylinder objects with ease. The scan head provided with a 300x300mm working area and the focus range is 100mm.
3DS-1
3DS-2
3DS-3
1 1
Laser Marking Machine
StellarMark 3DS 20-50W Fiber Laser Marker
The system is an all-in-one designed (only for 20W/30W), allowing easier and fast integration into the production line to meet every customers' needs.
INQUIRY

StellarMark 3DS 20-50W Fiber Laser Marker Feature

3D Scan Head

A 3-axis scan head is included for the best marking solution for round/cylinder objects.

All-in-one Design

The machine has an advanced All-IN-ONE design featuring size and easy integration into the production line.

300x300mm working area

Standard 300x300mm working area that helps you process large objects and allow your for far more applications.

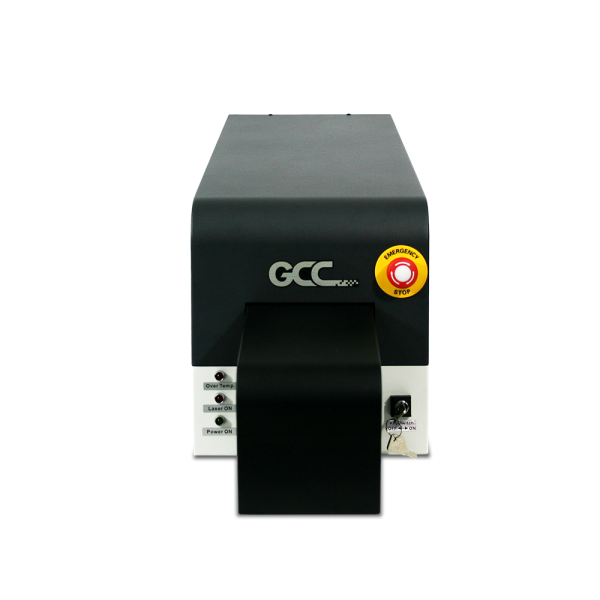

Emergency Stop

A red button located on the front of the machine allows operators to stop the laser and AC power immediately for greater safety.

Key Switch

The safety feature enables the manager/owner to keep the machine locked in a specific mode to avoid tampering.

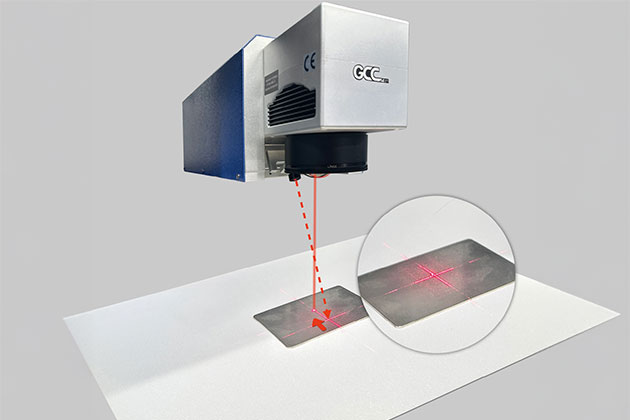

Pyramid-Focus Tool

The innovative and patented pyramid focus tool is an accessory unit for the best working distance on the StellarMark 3DS series.
Rotary Attachment - Marker

Rotary Attachment - Marker

The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.
MultiFOCUS

MultiFOCUS

MultiFOCUS function allows user to set multiple focus distances setting at once according to the object height. Z-axis will automatically adjust correctly so users do not need to set focal distance multiple times.
LFC D Desktop Workstation

LFC D Desktop Workstation

Compact and stylish desktop workstation. Equipped with many functions to keep operators safe.
LFC II

LFC II

Industrial Laser Marking Workstation
Design with Your Safety and Convenience in Mind.
EZ Stand

EZ Stand

EZ Stand is a simple laser marker holder that allows users to quickly set up a marking environment suitable for use with StellarMark C, I, and 3DS series.

StellarMark 3DS 20-50W Fiber Laser Marker Spec

StellarMark 3D-series3DS-20JFL3DS-30JFL3DS-50JFL
Laser SourceWavelength1,064 nm
TypeFiber Laser
Output Power20W30W50W
CoolingAir-cooled, no water chiller required
Working Area300 x 300 mm
Spot Size0.067 mm
Max. Linear Marking Speed6,000 mm/s
Max. Marking Speed12,000 mm/s
Focal Distance285 mm
Focus range in z direction100 mm
Electrical RequirementsPower SupplyAC Auto Switching 115V / 230V, 50-60 Hz/ single phase
Power Consumption740W
Dimensions
(L x W x H)		Laser Marker760 x 210 x 220 mm 760 x 210 x 220 mm
Laser Housing UnitN/A 383 x 318 x 120 mm
Laser Marker Weight20 Kg16.0 Kg
Laser Housing Unit WeightAll in one designedAll in one designed12.7 Kg
Operating systemMicrosoft Windows 7(32/64 Bit) / 8(32/64 Bit) / 10(32/64 Bit) (Desktop or Laptop PCs)
EnvironmentTemperature15℃ ~ 35℃
Humidity10 ~ 80% Non condensing
SafetyClass 4 (EN60825-1 Class 1 available with safety shield and LFCII and LFC D)
2006/42/EC Machinery Directive)
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
StellarMark 3DS
Model No.300
Working Area300 x 300 mm
Spot Size0.067 mm
Working Distance285 ± 2 mm
Repeatability**0.04 mm
